Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting¡¯s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.

Semi Digital PA System Characteristics Semi Digital PA System block diagram
Semi Digital PA System software Semi Digital PA System products
Semi Digital PA System Products Specification (BLACK)
Semi Digital PA System Products Specification (GOLD)

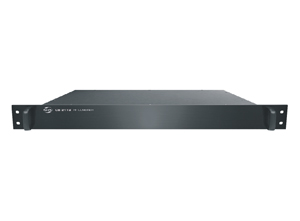

CB2118

SPECIFICATIONS
Input Channel 8CH
Frequency 5MHz~1GHz
Insertion Loss(IL) 12dB and below
Return Loss(RL) 16dB and below
Impedance 75ohm
Weight 3.2kg
Dimension 482(W)¡¿44(H)¡¿378(D)mm

Main Feature
To integrate RF signals from many TV modulators.
- Using broadband frequency.
- High definition with low insertion loss.
- High definition with low interference within input channels.
