Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
Semi Digital PA System Characteristics Semi Digital PA System block diagram
Semi Digital PA System software Semi Digital PA System products
Semi Digital PA System Products Specification (BLACK)
Semi Digital PA System Products Specification (GOLD)


CD2305

SPECIFICATIONS
Performance of Audio
Analog Output
Channel 2channels
Frequency Band 20Hz~20kHz
S/N Ratio 102dB
Dynamic Range Band 98dB
Harmonic Distortion 0.006%(1kHz)
Digital Output Coaxial
Power Supply AC 220V, 50Hz~60Hz
Power Consumption 14W
Weight 6.8kg
Dimension 482(W)×110(H)×388(D)mm

Main Feature

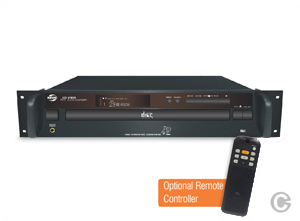

High performance Compact Disk Player
- Digital Servo function with cutting edge technology.

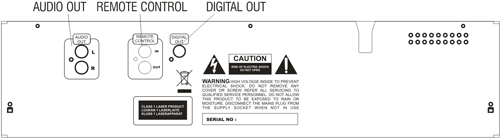

- Various output terminals used state-of-the-art 3-beam mechanism.
- Optical Digital output terminal (CD recorded signal is directly outputted to digital data).
- Analog output terminal.
- Digi Link terminal for remote control.
- Various convenient features
(Repeat/ Track scanning/ Random play/ Program play/ Seek the peak/ Display)
