SEMI Digital PA system SEMI Digital PA system

Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting¡¯s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.

Semi Digital PA System Characteristics Semi Digital PA System block diagram
Semi Digital PA System software Semi Digital PA System products
Semi Digital PA System Products Specification (BLACK)
Semi Digital PA System Products Specification (GOLD)

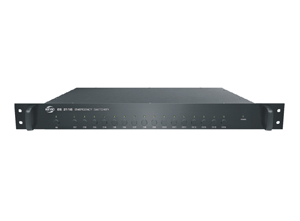

ES2116

SPECIFICATIONS
Fire Alarm 16channels
Communication 9600bps/Rs-232
Power Supply DC 24V, 100mA
Weight 3.2kg
Dimension 482(W)¡¿44(H)¡¿378(D)mm

Main Feature
Speaker switch controller for fire emergency
- 16 emergency contact closure functions.
- Possible to control 16 manual emergency switches and entire speakers.
- LED display shows emergency situations.
- Easier wiring extension.
- Possible to control on PC with RS-232 port.
Other..
