SEMI Digital PA system
Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
|
|
 |
|
|
|
 |
|
| SPECIFICATIONS |
|
| DC Power |
DC24V. 5A(switched,Un switched) |
| AC power |
Switched 2000W×3CH |
| Un switched 700W×1CH |
| Signaling Speed |
9600bps |
| Signaling Type |
RS-232 |
| Power Supply |
220V, 50Hz~60Hz |
| Weight |
9kg |
| Dimension |
482(W)×133(H)×378(D)mm |
|
| Main Feature |
|
| PD2300 supplies power to the rack systems and the remote amps |
|

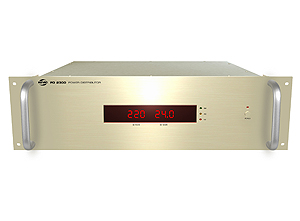

- Front panel shows AC/DC present voltage and to check them on PC installed DPSware Program is available at real time.
- To check AC/DC's on/off and emergency voltage supporting conditions is available by front LED.

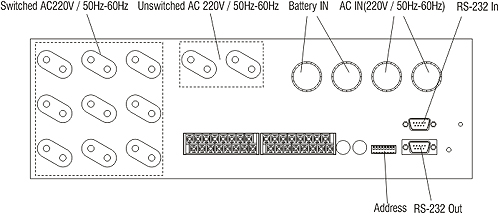

- Using up to 11 AC power supplied machines is allowed(9 of 6000W total capacity switched AC power suppliers + 2 of 1400W total capacity un-switched AC power suppliers).
- As supplying stable DC 24V voltage, DC powered devices are used conveniently.
- Using PC or remote controller separate from own power switch is available for the machine on/off to be more economical and efficiently.
|
|
 |
|
