SEMI Digital PA system
Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
|
|
 |
|
|
|
 |
|
| SPECIFICATIONS |
|
|
RG2106G |
RG2116G |
| Output Channel |
16CH |
16CH |
| Emergency Channel |
- |
16CH |
| Signaling Speed |
9600bps/RS-232 |
| Power Supply |
DC 24V, 400mA |
| Weight |
3.2kg |
| Dimension |
482(W)×44(H)×378(D)mm |
|
| Main Feature |
|
| Control output signals through relay |
|
- As following to commands from main CPU through corresponding line, exactly switching is possible according to se program or user definition.
|
|

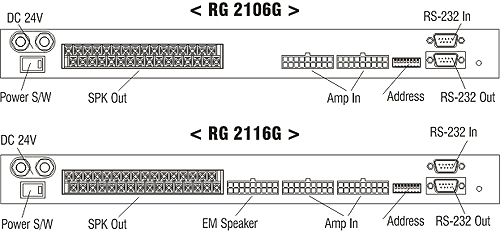

| RG2106G |
|
- Speaker output is 2-line type(+,-) which is used by connecting to general broadcasting.
|
|
| RG2116G |
|
- Speaker output is 2-line type(+,-) and 3-line(+,-,EM) which are used by connecting to general and emergency broadcasting.
|
|
 |
|
