SEMI Digital PA system
Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
|
|
 |
|
|
|
|
 |
|
| SPECIFICATIONS |
|
| Input Level |
Mic -45dbm/600Ω |
| Aux -10dbm/10㏀ |
| Output Channel |
0dbm/600 |
| Frequency Response |
15kHz |
| S/N Ratio |
More than 65db |
| Harmonic Distortion |
Less than 0.5% |
| Power Supply |
DC 24V, 1A |
| Weight |
1.5kg |
| Dimension |
201(W)×68(H)×212(D)mm |
|
| Main Feature |
|

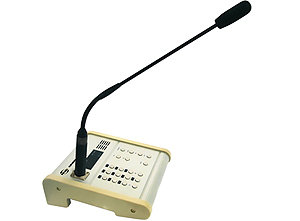

| Unique Remote device for Semi Digital PA System, possible to set up with remote receiver. |
|
- To notice broadcasting start/finish with Chime
(possible to mix the other sound source)
- External signals(CDP etc.) of line levels are allowed by AUX input channels.
- Possible to control volume of Mic, Chime and AUX separately.
- Sleek design with aluminum material.
- LEd indicator for while operation monitoring.
- Possible to use 4 remote devices simultanceously.
- When use several remote devices at onece, the former connected has priority.
- Simple line between remote amps and receiver
(Recommends: over FR3 2.0 SQ2C for line)
- For long distance connection, using external power is recommended
(Recommends: 500m)
|
|
 |
|
