Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
Semi Digital PA System Characteristics Semi Digital PA System block diagram
Semi Digital PA System software Semi Digital PA System products
Semi Digital PA System Products Specification (BLACK)
Semi Digital PA System Products Specification (GOLD)

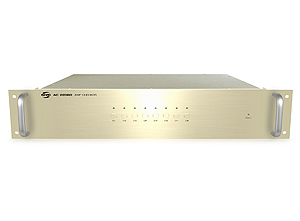

AC2208G

SPECIFICATIONS
Signaling Speed/Type 9600bps/RS-232
Input Channel 8CH
Output Channel 8CH
Spare Channel 1CH
Display LED
Power Supply DC 24V
Weight 4kg
Dimension 482(W)×88(H)×378(D)mm

Main Feature
Checks the status of amplifiers and replace with the extra amplifier in case of fail detection
- Checking the input signal and output signal.
- Amp check channel is 8CH.
- For defect, possible to change into sub-amp.
- Indicator added to show amp condition.
- Defect is confirmed at PC.
- Manually operation with front switches.
