SEMI Digital PA system SEMI Digital PA system

Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting¡¯s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.

Semi Digital PA System Characteristics Semi Digital PA System block diagram
Semi Digital PA System software Semi Digital PA System products
Semi Digital PA System Products Specification (BLACK)
Semi Digital PA System Products Specification (GOLD)

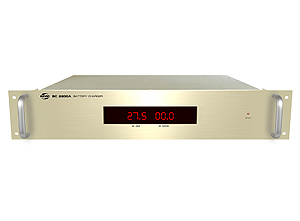

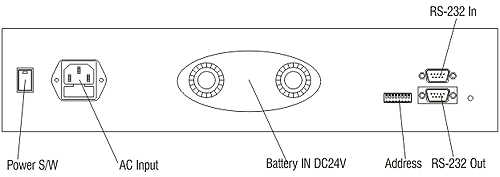

BC2200A

SPECIFICATIONS
Charging Voltage 27.5V
Charging Current Max. 3A
Power Supply 220V, 50Hz~60Hz
Signaling Speed 9600bps/RS-232
Weight 5.11kg
Dimension 482(W)¡¿88(H)¡¿378(D)mm

Main Feature
BC2200A is a battery charger for emergency situation which charges the battery generally and supplies power during emergency
- Charging current is 3A and voltage is 27.5V
- After charge, the current is controlled as 10~20mA to keep a storage.
- Front panel and DPSware Program on PC show current and voltage.
Other..
