SEMI Digital PA system
Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
|
|
 |
|
|
|
 |
 |
|
| SPECIFICATIONS |
|
| Frequency |
UHF740~752MHz |
| Frequency Band |
35Hz~22kHz |
| RF |
10mW |
| Type |
PLL Synthesized |
| Tone Frequency |
50kHz~60kHz Dual tone code |
| Power Supply |
2 of 1.5V AA size alkaline batteries |
| Battery life |
14 hours for DURACELL |
| QTY of Channel |
16CH |
| Temperature |
-10˚ ~ +50˚ |
| Weight |
220g |
| Dimension |
49.5(2R)×235(D)/66×24×117 |
|
| Main Feature |
|

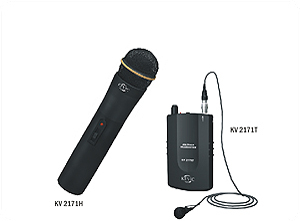

| Transmit the voice signal into 700MHz signal. Up to 16 channels Handheld, 2171HA and Beltpack, KV2171T |
|
- Mic ball consists of silicon color ring to prevent tumble and for design.
- Frequency band is 700MHz and long-time life.
(AA size Alkaline battery, 1.5V, 2EA for 15~17 hours)
- Built in highly efficient antenna.
- As Power LED off inform users of low battery.
|
|
|
