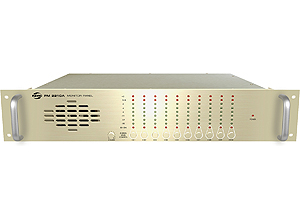

SEMI Digital PA system
Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
|
|
 |
|
|
|
 |
|
| SPECIFICATIONS |
|
| Monitor Speaker |
3W |
| Input level |
30V~100V |
| Monitor Channel |
10CH |
| Display |
8 DOT LED Meter/Each CH |
| Power Supply |
DC 24V, 700mA |
| Weight |
4.5kg |
| Dimension |
482(W)×88(H)×378(D)mm |
|
| Main Feature |
|
| Monitor speaker signals and the LED level meter show condition of power amp |
|
- LED level meters indicate the volumes of 10 channels.
- There is High impedance Line transformer to minimize loads of amp.
- Raise stability as balance input method.
- Control monitoring volume.
- Using small size speaker, output signal check power amplifier.
|
|
 |
|
