SEMI Digital PA system SEMI Digital PA system

Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
Semi Digital PA System Characteristics Semi Digital PA System block diagram
Semi Digital PA System software Semi Digital PA System products
Semi Digital PA System Products Specification (BLACK)
Semi Digital PA System Products Specification (GOLD)

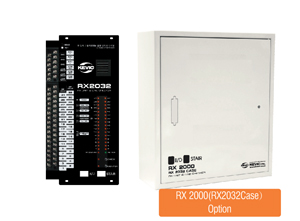

RX2032

SPECIFICATIONS
CPU Atemaga 128
Communication F.S.K(2-lines)/ 9600bps + 2 audio lines
Power DC 24V
Weight 15kg
Product Dimension 188(W)×305(H)×64(D)
Chassis material SPC 1.5T
Chassis Dimension 400(W)×300(H)×100(D)mm

Main Feature
Local broadcasting device for each local zone, can receive audio and remote control signal from TX2104 in main system.
It needs 4 lines wiring to decrease cost of wiring and pipe. And internal integrated speaker line check function.
- Bidirectional F.S.K communication through power line.
- Internal monitor speaker.
- LED indicator on front panel.
- Line check function.
Other..
