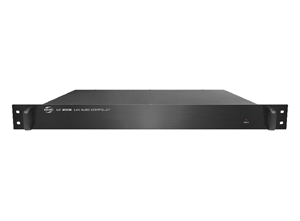

SEMI Digital PA system
Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
|
|
 |
|
|
|
|
 |
|
| SPECIFICATIONS |
|
| Line Out |
MONO 2CH(XLR) |
| MIC In |
MONO 2CH(+15V Phantom Power)(XLR) |
| Line In |
MONO 2CH(XLR) |
| Sampling Rate/Depth |
MAX 44kHz 16bit 128kbps MP3 |
| Power |
DC12~24V |
| RS-232 |
2 PORT |
| LAN |
1 PORT |
| Weight |
3kg |
| Dimension |
482(W)×44(H)×378(D)mm |
|
| Main Feature |
|
| Interface audio and RS-232 between buildings or areas |
|
- Reciprocating audio and RS-232 with LAN type.
- Clean sound quailty as MP3.
- Supporting 2 RS-232 ports which can control 2 tools.
- Easy set to IP.MAC address, Server/Client, Audio quality and speed of RS-232.
|
|
 |
|
