SEMI Digital PA system
Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
|
|
 |
|
|
|
|
 |
|
| SPECIFICATIONS |
|
| DC Power |
DC 24V. 5A(Switched, Un switched) |
| AC Power |
Switched 2000W×3CH |
| Un switched 700W×1CH |
| Signaling Speed |
9600bps |
| Signaling Type |
RS-232 |
| Power Supply |
220V, 50Hz~60Hz |
| Weight |
9kg |
| Dimension |
482(W)×133(H)×378(D)mm |
|
| Main Feature |
|
| Supplying power to remote amp and rack systems Possible to be operated receiving ontact closures. |
|

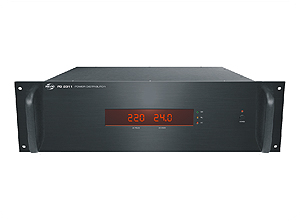

- Front Panel indicates AC/DC voltage and the real time monitoring is available.
- Front LED shows AC/DC On/Off and emergency power supplying conditions.

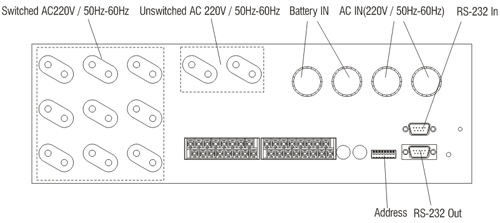

- Up to 11 AC power used devices are possible to be connected simultaneously
(Total 6000W capacity of 9 switched AC power + total 1400W capacity of 2 un-switched AC power)
- Stable DC 24V power supply.
- Easy and efficient power control with PC/remote switching control separated form main switches.
|
|
 |
|
