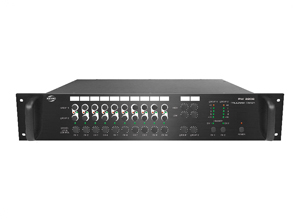

SEMI Digital PA system
Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
|
|
 |
|
|
|
|
 |
 |
|
| SPECIFICATIONS |
|
| Input Channel |
10CH (Mic/Line) |
| Output Channel |
2CH |
| Input Sensivity |
Mic -50dbu, Line -20dub |
| Output level |
Master: 0dbm, 600ohm/Balanced |
| REC: -5dbm, 10Kohm |
| Frequency Characteristic |
20Hz~20kHz(-3dB) |
| S/N Ratio |
More than 70db |
| THD |
Less than 0.02% |
| Power Supply |
DC24V,500mA below |
| Weight |
4.5kg |
| Dimension |
482(W)×88(H)×378(D)mm |
|
| Main Feature |
|
| High performance Compact Disk Player |
|
- Digital Servo function with cutting edge technology.
- Various output terminals used state-of-the-art 3-beam mechanism.
- Optical Digital output terminal (CD recorded signal is directly outputted to digital data).
- Analog output terminal.
- Digi Link terminal for remote control.
- Various convenient features
(Repeat/ Track scanning/ Random play/ Program play/ Seek the peak/ Display)
|
|
 |
|
| Other.. |
|
|
|
