SEMI Digital PA system SEMI Digital PA system

Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting¡¯s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.

Semi Digital PA System Characteristics Semi Digital PA System block diagram
Semi Digital PA System software Semi Digital PA System products
Semi Digital PA System Products Specification (BLACK)
Semi Digital PA System Products Specification (GOLD)

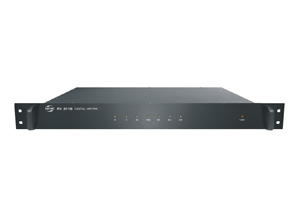

PX2116

SPECIFICATIONS
Priority Indicator LED(7EA)
Digi Link Channel 3CH
Signaling Speed 9600bps/RS-232
Power Supply DC 24V
Weight 2.7kg
Dimension 482(W)¡¿44(H)¡¿378(D)mm

Main Feature
This is the main device of SEMI Digital Pa System to control sound sources and to select addressing area
- Control priority of sound sources.
- Available for individual/group broadcasting with area selection, group and memory function.
- Freely setting and editing.
Other..
