SEMI Digital PA system
Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
|
|
 |
|
|
|
|
 |
|
| SPECIFICATIONS |
|
|

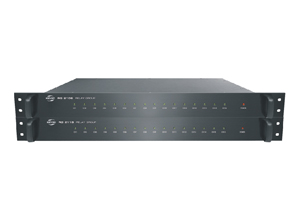

RG2106 |
RG2116 |
| Output Channel |
16CH |
16CH |
| Emergency Channel |
- |
16CH |
| Signaling Speed |
9600bps/RS-232 |
| Power Supply |
DC 24V, 400mA |
| Weight |
3.2kg |
| Dimension |
482(W)×44(H)×378(D)mm |
|
| Main Feature |
|
| This device controls speakers with relays. |
|
- Following to commands from main CPU through corresponding line, exactly switching is possible according to set program or user definition.
|
|

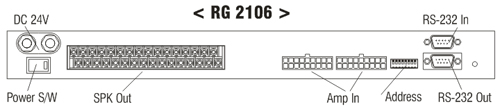

| RG2106 |
- Speaker output is 2-line type (+,-) for general announcements.
|
|

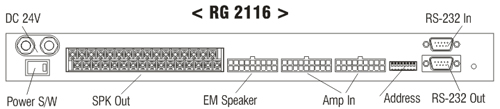

| RG2116 |
- Speaker output can be 2-line type (+,-) and 3-line type (+,-,EM) for general and emergency announcements.
|
|
 |
 |
|
| Other.. |
|
|
|
