Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting’s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.
Semi Digital PA System Characteristics Semi Digital PA System block diagram
Semi Digital PA System software Semi Digital PA System products
Semi Digital PA System Products Specification (BLACK)
Semi Digital PA System Products Specification (GOLD)

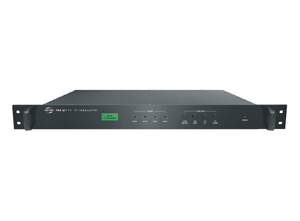

TM2111

SPECIFICATIONS
Power Supply AC 220V, 50Hz
Weight 3.2kg
Dimension 482(W)×44(H)×378(D)mm
RF Characteristic
Output Frequency 54MHz~870MHz
VISUAL Output Level 110dB (20dB changable)
AURAL Output Level -12~23dB(changable)
Stability of Frequency ±10kHz
Stationary Wave Ratio 1.8
Impedance 75ohm
Spurious Over 60dB
Audio Signal Characteristic
Frequency Characteristic ±0.5dB(50Hz ~ 15kHz)
S/N Ratio Over 55dB
Input Channel -10dB
Harmonic Distortion 0.5%
Visual Signal Characteristic
Frequency Characteristic ±1dB(25Hz ~ 4.2MHz)
Differential Gain(DG) 3%
Video Modulation Ratio 87.5%
S/N Ratio Over 50dB
Input Channel 1Vp~p75ohm

Main Feature
Image and sound signals modulate the RF signal and it turns to TV channel.
- User can select channels.
- Using existing TV channel.
- The highest frequency stability.
- Stable outpu t system with RF amp.
- To prevent operation miss due to channel lock function.
