Semi Digital PA system adds control and communication function to the essential equipment of existing analog privilege of broadcasting, which realizes school broadcasting¡¯s multi-function. According to social trend, we developed it by compensating equipment control and operation condition monitoring as PC management program for building requesting integrated operation. In the case that there is not PC program, you can conveniently use it by initial setup value.

Semi Digital PA System Characteristics Semi Digital PA System block diagram
Semi Digital PA System software Semi Digital PA System products
Semi Digital PA System Products Specification (BLACK)
Semi Digital PA System Products Specification (GOLD)

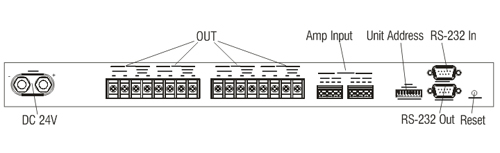

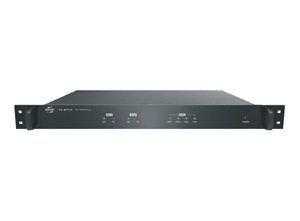

TX2104

SPECIFICATIONS
Signaling Speed/Type F.S.K(2-wires Type)
Communication Input Channel 1CH
Amplifier Input Channel 4CH
Communication Output Channel 4CH
Amplifier Output Channel 4CH
Maximum connectable number 10EA
Power Supply DC 24V, 100mA
Weight 3kg
Dimension 482(W)¡¿44(H)¡¿378(D)mm

Main Feature
Distributing data line to every device from SEMI&APT Digital PA System.
- 2-lines dual-directional power link.
- 19-inches RACK type.
- Distributor of communication lines.
- Distributor of amp power output lines.
- LED indicator.
- Available for parallel connection.
